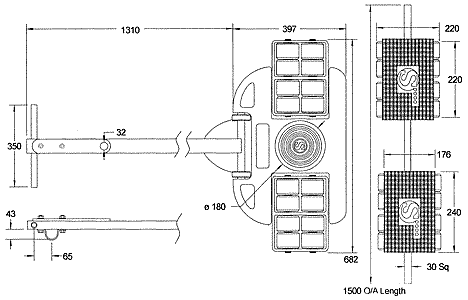

SX20 (20 tonne) Load Moving System

SX20 (20 tonne) Load Moving System

SX20 (20 tonne) Load Moving System

SX20 (20 tonne) Load Moving System

Carrying capacity of system: 20,000 kgs

Wheels (Black composite): 32 off x 82mm dia x 48mm

Turntable diameter: 180mm

Overall loading height: 102mm

Rear width adjustment: 480mm to 1500mm

Load area of rear skates: 2 off x 240mm x 176mm

Total boxed weight: 76kgs

Towing eye as standard: Yes
