Model WW/D/FSB 2000kgs to 5000kgs

Model WW/D/FSB 2000kgs to 5000kgs

Model WW/D/FSB 2000kgs to 5000kgs

Model WW/D/FSB 2000kgs to 5000kgs

Robust and safe hoisting winch, with two speeds.
Square worm-wormwheel transmission and maintenance free bearing.
Cable Outlet on top or rear.
Drum free spooling with adjustable friction brake for controlled cable unwinding.
Adjustable crank from 250 to 380mm, with ergonomic plastic hand grip.
Load Pressure brake with double ratchet system.
Painted or zinc-plated finish.
Grooved drum as extra option (GD instead of 2D).
Multi compartment drum possible (2D instead of D).
In compliance with DIN 15020 and the German Safety Regulations for Lifting and Pulling Equipment VBG 8 / 2003.

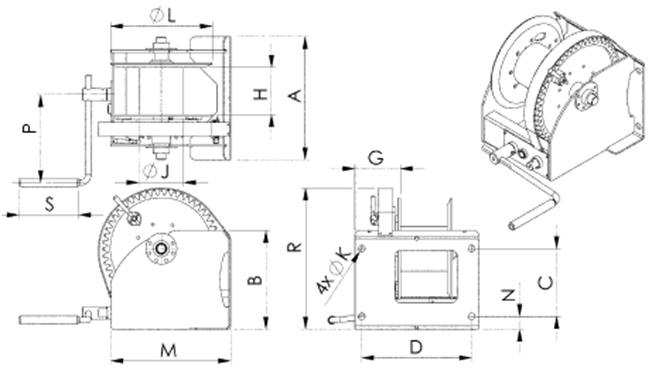

Model A B C D G H J K L M N P R S
WW2000/D/FSB 430 310 196 380 45 149 133 25 312 382 20 380 421 167
WW3000/D/FSB 458 365 251 408 47 174 165 25 376 442 20 380 523 168
WW4000/D/FSB 458 365 251 408 47 174 165 25 376 442 20 380 523 168
WW5000/D/FSB 455 425 316 413 38 172 219 25 437 494 20 380 599 167

Model

Capacity

Crankforce

Pulling

Storage

Cable

Wt



1st
layer

Last l
ayer

1st
layer

1st
rotation

Max
cable

Dia



kgs

kgs

daN

mm

m

mm

WW2000/D/FSB

2000

1129

22(12)

12(6)

35

13

WW3000/ D/FSB

3000

1861

28(17)

11(6)

44

16

WW4000/ D/FSB

4000

2390

37(14)

11(4)

44

16

WW5000/ D/FSB

5000

3165

52(18)

12(4)

36

20
