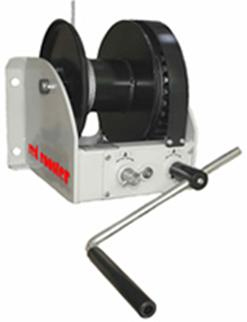

Robust and safe hoisting winch, with two speeds.
Square worm wormwheel transmission and maintenance free bearing.
Cable Outlet on top or rear.
Drum free spooling.
Adjustable crank from 250 to 380mm, with ergonomic plastic hand grip.
Load Pressure brake with double ratchet system.
Painted or zinc-plated finish.
Grooved drum as extra option (GD instead of 2D).
Multi compartment drum possible (2D instead of D).
In compliance with DIN 15020 and the German Safety Regulations for Lifting and Pulling Equipment VBG 8 / 2003.
| Model | Capacity | Crankforce | Pulling | Storage | Cable | Wt | |
| 1st layer | Last layer | 1st layer | 1st rotation | Max cable | dia | ex cable | |
| kgs | kgs | daN | mm | m | mm | kgs | |
| WW2000/D/FS | 2000 | 1129 | 22(12) | 12(6) | 35 | 13 | 63 |
| WW3000/ D/FS | 3000 | 1861 | 28(17) | 11(6) | 44 | 16 | 82 |
| WW4000/ D/FS | 4000 | 2390 | 37(14) | 11(4) | 44 | 16 | 84 |
| WW5000/ D/FS | 5000 | 3165 | 52(18) | 12(4) | 36 | 20 | 122 |
| Type | A | B | C | D | G | H | J | K | L | M | N | P | R | S |
| WW/D/FS | 430 | 310 | 196 | 380 | 45 | 149 | 133 | 25 | 312 | 382 | 20 | 380 | 421 | 167 |
| WW2000/D/FS | 458 | 365 | 251 | 408 | 47 | 174 | 165 | 25 | 376 | 442 | 20 | 380 | 523 | 168 |
| WW3000/D/FS | 458 | 365 | 251 | 408 | 47 | 174 | 165 | 25 | 376 | 442 | 20 | 380 | 523 | 168 |
| WW4000/ D/FS | 455 | 425 | 316 | 413 | 38 | 172 | 219 | 25 | 437 | 494 | 20 | 380 | 599 | 167 |
