Model WW/D 2000kgs to 5000kgs Capacity

Model WW/D 2000kgs to 5000kgs Capacity

Model WW/D 2000kgs to 5000kgs Capacity

Model WW/D 2000kgs to 5000kgs Capacity

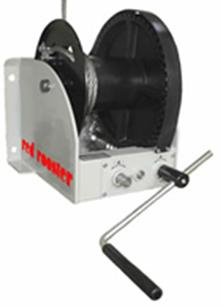

Robust and safe hoisting winch, with two speeds.

Square worm-worm wheel transmission and maintenance free bearing.

Cable Outlet on top or rear.

Adjustable crank from 250 to 380mm, with ergonomic plastic hand grip.

Load Pressure brake with double ratchet system.

Painted or zinc-plated finish.

Grooved drum as extra option (GD instead of 2D).

Multi compartment drum possible (2D instead of D).

In compliance with DIN 15020 and the German Safety Regulations for Lifting and Pulling Equipment VBG 8 / 2003.

Model Capacity Crankforce Pulling Storage Cable Wt
  1st layer Last layer 1stlayer 1st rotation Max cable dia ex cable
  kgs kgs daN mm m mm kgs
WW2000 2000 1129 22(12) 12(6) 46m 13 60
WW3000 3000 1861 28(17) 11(6) 52m 16 78
WW4000 4000 2390 37(14) 11(4) 52 16 80
WW5000 5000 3165 52(18) 12(4) 40 20 117

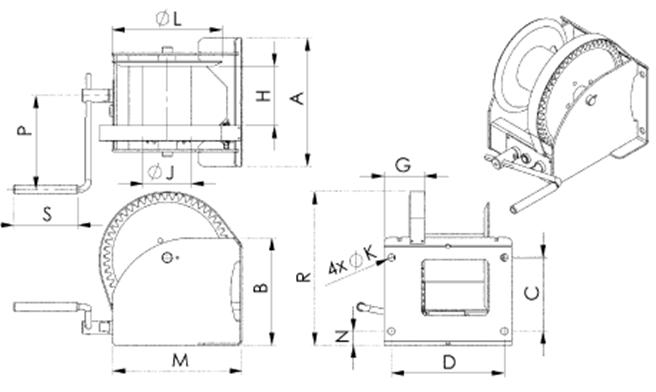

Model A B C D G H J K L M P R S Z
WW/D2000 410 310 196 360 45 176 133 25 312 382 380 421 137 20
WW/D3000 436 365 251 386 47 204 165 25 376 442 380 523 137 20
WW/D4000 436 365 251 386 47 204 165 25 376 442 380 523 137 20
WW/D5000 436 425 316 386 38 200 219 25 437 494 380 599 137 20
