Industrial Worm Gear Hand Winches

Industrial Worm Gear Hand Winches

Industrial Worm Gear Hand Winches

Industrial Worm Gear Hand Winches

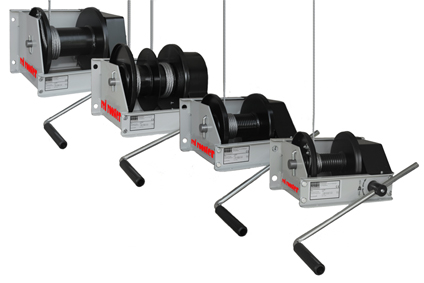

Model VL 250 kgs to 1500 kgs Capacity.

A range of high quality worm gear winches designed for wall mounting.
Suitable for heavy-duty industrial applications.
The winches conform to DIN15020 and are CE marked,meeting the requirements of the European Machinery Directive.

Options
Split drum with two rope anchors.
Grooved drum (VL1500

Features

Automatic holding brake (Arrests and holds a
suspended load.
Prevents ‘kick back’ on the crank handle)
Ergonomically designed adjustable length crank.
Geared for maximum rope recovery per crank
revolution without undue operator fatigue.
High quality enamel paint finish, dipped and baked.

Model Capacity Crankforce Pulling Storage Cable Wt
1st layer Top layer 1stlayer 1st rotation Max cable dia ex cable
kgs kgs daN mm m mm kgs
VL250 250 95 3.5 17 97 5 13
VL500 500 239 9 20 77 6 16
VL1000 1000 542 15.5 13 55 9 26
VL1500 1500 845 19 13 49 10 28

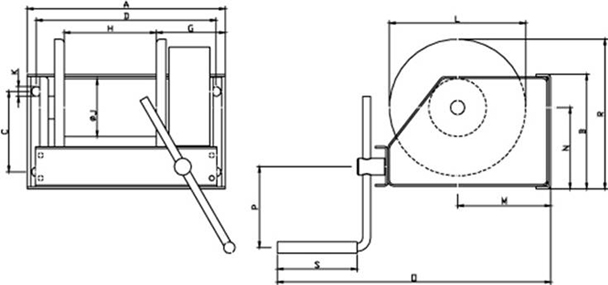

Model A B C D G H J K L M N O P R S
VL250 293 140 82 261 123 107 48 17 160 121 88 410 350 170 140
VL500 313 164 106 281 125 129 70 17 190 138 96 440 350 190 140
VL1000 348 201 141 316 127 160 102 17 240 164 140 490 350 280 140
VL1500 378 238 178 346 127 185 102 17 240 164 142 490 350 263 140
