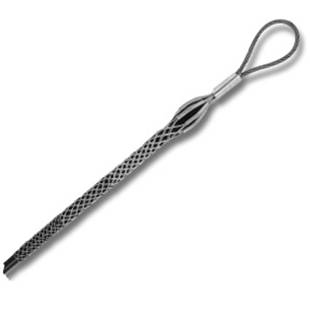

High strength cable socks with heavy duty shoulders, for stringing or pulling-in non-insulated conductors on long, high voltage transmission lines, or other high load load cable grip applications.
Full specifications are given in the table below.
| Cable dia |
Type (code no.) |
Single Lattice mm |
Double Lattice mm |
Triple Lattice mm |
Actual breaktons |
| 6-13 |
M1 |
215 |
215 |
215 |
2.5T |
| 13-19 |
M2 |
317 |
317 |
317 |
3.4T |
| 19-25 |
M3 |
330 |
330 |
330 |
5.5T |
| 25-32 |
M4 |
444 |
444 |
444 |
9.5T |
|
32-38 |
M5 |
487 |
487 |
487 |
11.5T |
| 38-48 |
M6 |
660 |
660 |
660 |
18T |
| |
General Purpose Wire Rope |
Multi Strand Wire Rope |
|
Fibre Core 6×19. 6×36. 6×41. Tensile Grade 1770 N/mm2 |
Steel Core 6×19. 6×36. 6×41. Tensile Grade 1770 N/mm2 |
Steel Core 17×7. 18×7. Tensile Grade 1770 N/mm2 |
| Nominal Dia |
Min Break Force |
Min Break Load |
Max Safe Load |
Min Break Force |
Min Break Load |
Max Safe Load |
Min Break Force |
Min Break Load |
Max Safe Load |
3mm |
4.89kn |
0.50t |
0.10t |
5.29kn |
0.54t |
0.11t |
|
|
|
| 4mm |
8.89kn |
0.89t |
0.18t |
0.4kn |
0.96t |
0.19t |
|
|
|
| 5mm |
13.6kn |
1.39t |
0.28t |
14.7kn |
1.50t |
0.30t |
|
|
|
| 6mm |
19.6kn |
2.00t |
0.40t |
21.2kn |
2.16t |
0.43t |
20.9kn |
2.13t |
0.43t |
| 7mm |
28.6kn |
2.92t |
0.66t |
30.9kn |
3.15t |
0.63t |
28.4kn |
2.90t |
0.58t |
| 8mm |
37.4kn |
3.81t |
0.76t |
40.3kn |
4.11t |
0.82t |
37.2kn |
3.79t |
0.76t |
| 9mm |
47.3kn |
4.82t |
0.96t |
51kn |
5.20t |
1.04t |
47kn |
4.79t |
0.96t |
| 10mm |
58.4kn |
5.95t |
1.19t |
63kn |
6.42t |
1.28t |
58.1kn |
5.92t |
1.18t |
| 11mm |
70.7kn |
7.21t |
1.68t |
76.2kn |
7.77t |
1.55t |
70.2kn |
7.16t |
1.43t |
| 12mm |
84.1kn |
8.57t |
1.71t |
90.7kn |
9.25t |
1.85t |
83.6kn |
8.52t |
1.70t |
| 13mm |
98.7kn |
10.10t |
2.02t |
106kn |
10.80t |
2.16t |
98.1kn |
10.00t |
2.00t |
| 14mm |
114kn |
11.60t |
2.32t |
124kn |
12.60t |
2.52t |
114kn |
11.60t |
2.32t |
| 16mm |
150kn |
15.30t |
3.06t |
161kn |
16.40t |
3.28t |
149kn |
15.20t |
3.04t |
| 18mm |
189kn |
19.30t |
3.86t |
204kn |
20.80t |
2.16t |
188kn |
19.20t |
3.84t |
| 19mm |
211kn |
21.50t |
4.30t |
227kn |
23.10t |
4.62t |
210kn |
21.40t |
4.28t |
| 20mm |
234kn |
23.90t |
4.78t |
252kn |
25.70t |
5.14t |
232kn |
23.60t |
4.72t |
| 22mm |
283kn |
28.80t |
5.76t |
305kn |
31.10t |
6.22t |
281kn |
28.60t |
5.72t |
| 24mm |
336kn |
34.30t |
6.86t |
363kn |
37.00t |
7.40t |
334kn |
34.00t |
6.80t |
| 26mm |
395kn |
40.30t |
8.06t |
426kn |
43.40t |
8.68t |
392kn |
40.00t |
8.00t |
| 28mm |
458kn |
46.70t |
9.34t |
494kn |
50.40t |
10.08t |
455kn |
46.40t |
9.28t |
| 32mm |
598kn |
61.00t |
12.20t |
645kn |
65.70t |
13.14t |
594kn |
60.60t |
12.12t |
| 35mm |
716kn |
73.00t |
16.60t |
772kn |
78.70t |
15.74t |
|
|
|
| 36mm |
757kn |
77.20t |
15.44t |
817kn |
83.30t |
16.66t |
|
|
|
| 38mm |
843kn |
85.90t |
17.18t |
910kn |
92.80t |
18.56t |
|
|
|
| 40mm |
935kn |
95.30t |
19.06t |
1008kn |
103.00t |
20.60t |
|
|
|
| 44mm |
1131kn |
115.00t |
23.00t |
1220kn |
124.00t |
24.80t |
|
|
|
| 48mm |
1346kn |
137.00t |
27.40t |
1452kn |
148.00t |
29.60t |
|
|
|
| 52mm |
1679kn |
161.00t |
32.20t |
1704kn |
174.00t |
34.80t |
|
|
|
| 54mm |
1703kn |
174.00t |
34.80t |
1837kn |
187.00t |
37.40t |
|
|
|
| 56mm |
1832kn |
187.00t |
37.40t |
1970kn |
201.00t |
40.20t |
|
|
|
| 60mm |
2103kn |
214.00t |
42.80t |
2268kn |
231.00t |
46.20t |
|
|
|
