For lifting and transportation of steel plates and structures from all positions (horizontal, vertical and sidelong). With reinforced body (like TE-X/STE-X). Articulated lifting shackle. The TSVLA-X /STSVLA-X lifting clamps are equipped with a safety mechanism, ensuring the clamp does not slip when lifting force is applied and when load is being lowered. The clamp is locked in closed as well as in open position. Lifting capacity and jaw opening are clearly engraved in the body. Type STSVLA-X is supplied with enlarged jaw opening. TERRIER TSVLA-R-X For lifting and transportation of stainless steel plates and structures a TSVLA-R-X lifting clamp is available. Pivot, cam and cam pin are made of stainless steel. Body and lock lever are nickel plated to prevent corrosion due to carbon contamination.

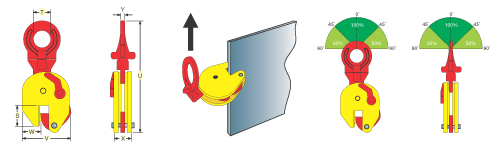

type cap jaw All dimensions in mm wt
  kgs R S T U V W X Y kgs
0.75 TSVLA 750 0-13 47 30 217 90 35 37 10 1.7
1 TSEVLA 1000 0-18 55 45 330 125 38 29 17 3.6
1 TSEVLA 1000 0-25 55 45 270 135 38 27 16 3.5
1.5TSVLA 1500 0-20 77 70 370 175 63 50 17 7
1.5 TSEVLA 1500 0-35 77 70 370 175 63 50 17 7.3
2 TSEVLA 2000 0-35 77 65 370 175 55 50 16 8
3 TSVLA 3000 0-25 85 70 430 175 60 68 20 15
3 TSEVLA 3000 0-45 85 70 450 205 65 68 20 15.5
4 TSVLA 4000 0-32 112 75 500 240 85 68 20 20
6 TSVLA 6000 0-40 112 80 530 250 95 86 30 25
7.5 TSVLA 7500 0-55 112 75 560 270 95 86 20 27
9 TSVLA 9000 0-52 125 86 620 330 140 94 44 42
12 TSVLA 12000 0-76 140 90 770 395 160 106 49 75
15 TSVLA 15000 0-76 140 90 770 395 160 116 49 77
20 TSVLA 20000 0-76 170 100 890 500 175 142 54 145
25 TSVLA 25000 0-76 170 100 890 500 175 150 54 148
30 TSVLA 30000 0-76 170 100 890 500 175 170 60 150
- - - - - - - - - - -
1.5 TSVLA-R 1500 0-20 77 70 370 175 63 52 17 8
- - - - - - - - - - -
2 STSVLA 2000 17-38 77 65 370 175 55 50 16 8
