TSHPU is a follow-up of the TSHP-1 and TSHP-1.5. It is especially designed for lifting, handling and transpor-tation of HP-profile and construction with HP-profile. Properties Capacity 3.0 tons. Opening 0-35 mm. Capacity 5.0 tons. Opening 0-45 mm.

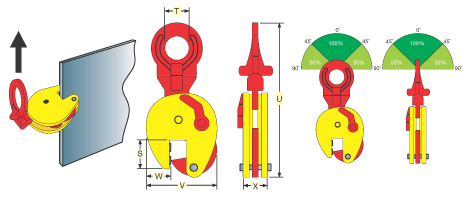

| type | cap | jaw | All dimensions in mm | wt | |||||
| kgs | R | S | T | U | V | W | X | kgs | |
| 3 TSHPU | 3000 | 0-35 | 120 | 72 | 370 | 175 | 55 | 17 | 15 |
| 5 TSHPU | 5000 | 0-45 | 120 | 75 | 410 | 230 | 70 | 20 | 19 |
