TERRIER TSCC

TERRIER TSCC

TERRIER TSCC

TERRIER TSCC

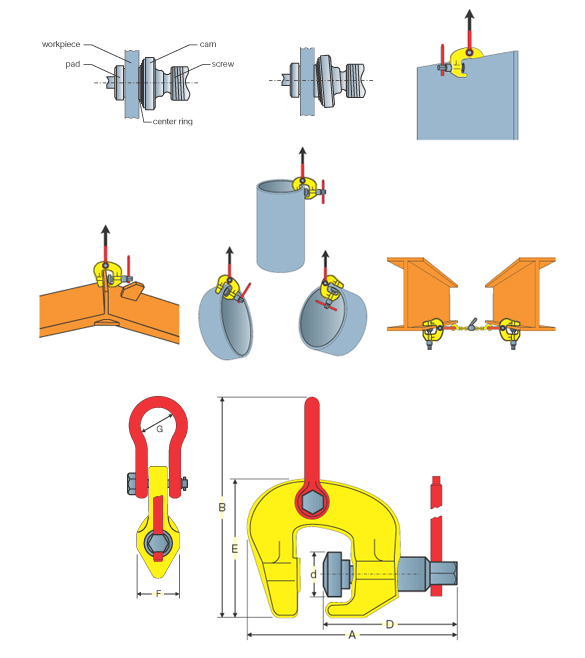

Universal screw clamp for vertical and horizontal lifting and transportation of a large variety of steel structures. The TSCC screw clamp is fitted with a moveable cam on the thread spindle which provides a powerful clamping force on the workpiece. The articulated lifting eye ensures an effective clamping force in every position.

type cap jaw Dimensions in mm wt
  kg R A B D E F G kgs
0.5 TSCC 500 0-28 156 113 76 30 17 0.8
0.75 TSCC 750 0-22 167 201 120 125 46 38 3
1.5 TSCC 1500 0-32 187 229 135 143 46 45 4
3 TSCC 3000 0-50 224 265 165 165 54 50 6
6 TSCC 6000 0-75 229 365 215 214 69 80 18
