TERRIER TR7K-2

TERRIER TR7K-2

TERRIER TR7K-2

TERRIER TR7K-2

For vertical lifting and transportation of structures where box-profile is used as frame. For example mobile units etc. The clamp can fit into the profile and as the clamps will be vertical forced the cam grip to the side of the box-profile. After lifting the clamp can be opened with the handle. Because of the compact form of the clamp it needs not more space than the outside dimension of the box-profile. The clamp is fitted with a universal lifting eye.

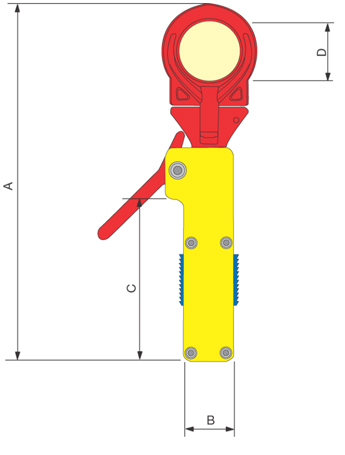

type cap Dimensions in mm wt
  kgs A B C D kgs
TR7K-2 2000 410 60-68 190 70 6.5
