For horizontal lifting and transportation of steel and concrete pipes. Compact shape and relatively low own weight with a high lifting capacity. The surface is equipped with “special” plastic. The Terrier TPH will be delivered per pair. Plastic cover is easy to change. TPH can be delivered with Berglock-coupling BL.

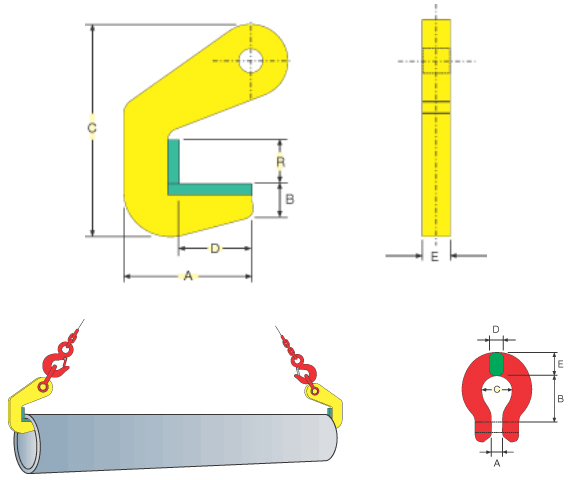

| type | Wll Per Pr | jaw | Dimensions mm | wt | ||||
| kg | R | A | B | C | D | E | kgs | |
| 1.5 TPH | 1500 | 40 | 120 | 32 | 195 | 75 | 35 | 2.2 |
| 3 TPH | 3000 | 40 | 120 | 32 | 195 | 75 | 35 | 2.5 |
| 4 TPH | 4000 | 50 | 120 | 32 | 205 | 75 | 40 | 3 |
| 6 TPH | 6000 | 50 | 120 | 32 | 205 | 75 | 40 | 3.3 |
| 8 TPH | 8000 | 70 | 120 | 32 | 205 | 75 | 40 | 4.5 |
| – | – | – | – | – | – | – | – | – |
| 7/8-8 BL | 2000 | – | 7/8 | 35 | 25 | 11 | 18 | 0.2 |
| 10-8 B L | 3200 | – | 10 | 45 | 32 | 14 | 22 | 0.4 |
| 13-8 BL | 5400 | – | 13 | 56 | 40 | 17 | 28 | 1 |
