TNMK is a NON-MARKING clamp with 2 special synthetic pads. The clamp can be used for lifting, handling and transportation (stainless) steel, aluminium, wood and marble plates. After lifting and handling, the clamps leave no markings. Capacity 500 kg. Opening 1-20 mm or 17-37 mm. The clamp is locked in closed as well as in open position. Models with bigger capacity and opening are due next year.

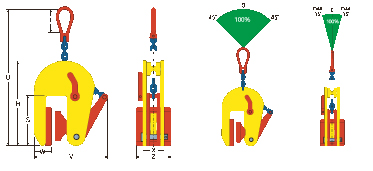

| type | cap | jaw | All dimensions in mm | wt | ||||||
| kgs | R | S | T | U | V | W | X | Y | kgs | |
| 0.5 TNMK | 500 | 1-20 | 80 | 100 | +-400 | 160 | 38 | 47 | 80 | 4.5 |
| 0.5 STNMK | 500 | 17-37 | 80 | 100 | +-400 | 177 | 38 | 47 | 80 | 4.7 |
| 0.5 TNMKA | 500 | 60-180 | 80 | 100 | 440 | 220-400 | 55 | 60 | 80 | 7 |
| 1 TNMK | 1000 | 1-25 | 80 | 110 | 480 | 200 | 48 | 50 | 80 | 5.4 |
| 1.5 TNMK | 1500 | 1-40 | 80 | 110 | 500 | 220 | 48 | 50 | 80 | 7.2 |
| 2 TNMK | 2000 | 1-50 | 100 | 120 | 530 | 240 | 58 | 65 | 80 | 10.3 |
| 3 TNMK | 3000 | 1-60 | 100 | 120 | 550 | 270 | 58 | 65 | 80 | 14.5 |
