For lifting and transportation of thin sheets that deflect when being lifted. Compact shape and relatively low own weights, with a high lifting capacity. The Terrier TDH horizontal lifting clamps must always be used in pairs (or multiples thereof).

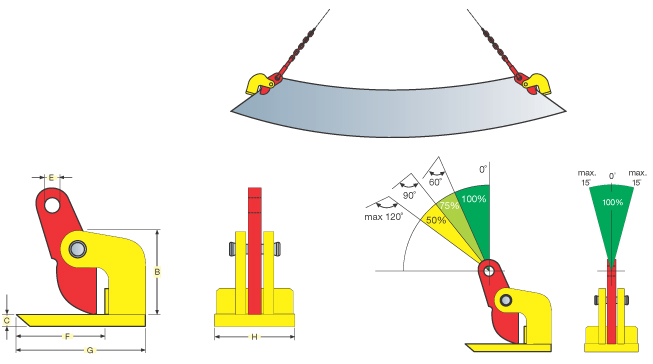

| type | cap | jaw | All dimensions in mm | wt | |||||
| kgs | R | H | B | C | E | F | G | kgs | |
| 1 TDH | 1000 | 0-15 | 170 | 65 | 95 | 10 | 20 | 80 | 2.7 |
| 2 TDH | 2000 | 0-35 | 260 | 80 | 120 | 15 | 25 | 95 | 4 |
