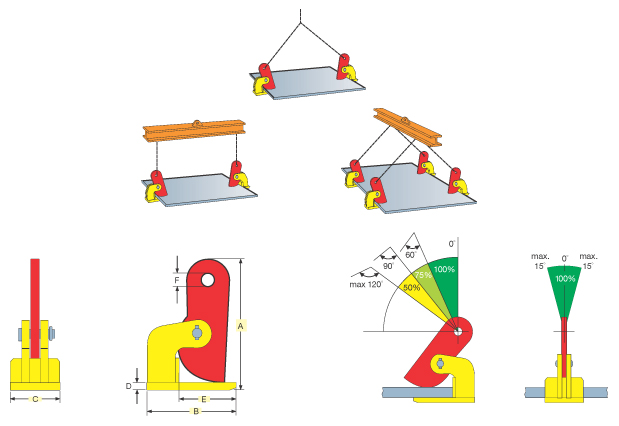

For horizontal lifting and transportation of steel plates. The compact shape and relative light own weight with a high lifting capacity. The Terrier FH-X/FHS-X lifting clamps must always be used in pairs (or multiples thereof). Lifting capacity and jaw opening are clearly engraved in the body. The FHS-X has an enlarged jaw opening.

type cap jaw All dimensions in mm wt
  kgs R T S U V W X kgs
1 FH-X 1000 0-35 180 140 65 10 100 25 3
2 FH-X 2000 0-60 275 180 80 15 115 30.5 6
3 FH-X 3000 0-60 280 180 80 20 130 30.5 6.5
4 FH-X 4000 0-60 285 222 90 20 130 30.5 14
6 FH-X 6000 0-60 290 222 90 25 140 30.5 14
8 FH-X 8000 0-60 320 225 110 30 140 30.5 18
10 FH-X 10000 0-60 325 225 110 35 140 30.5 20
12 FH-X 12000 0-80 340 230 120 35 140 30.5 25
- - - - - - - - - -
2 FHS-X 2000 0-100 335 180 80 15 115 30.5 7
3 FHS-X 3000 0-100 360 180 80 20 115 30.5 7.5
4 FHS-X 4000 0-100 365 222 90 20 130 30.5 13
6 FHS-X 6000 0-100 375 222 90 25 130 30.5 16
8 FHS-X 8000 0-100 400 225 110 30 140 30.5 17
10 FHS-X 10000 0-100 405 225 110 35 140 30.5 23
12 FHS-X 12000 0-100 420 230 120 35 140 30.5 25
15 FHS 15000 0-100 480 230 140 35 130 30.5 33
