TERRIER FBK

TERRIER FBK

TERRIER FBK

TERRIER FBK

For lifting and transportation of steel beams, profiles and structures where the load must stay in position. The special shape of the lifting shackle, places the centre of the gravity of the beam to be lifted directly beneath the lifting shackle. This maintains the equilibrium of the beam once it has been lifted and keeps the flanges of the vertical so that the beam can easily be stacked or positioned. Especially recommended for transportation and stacking of steelbeams (e.g. when sawing of steelbeams, stacking of steelbeams and building of steel contructions). Lifting capacity and jaw-opening are clearly engraved in the body.

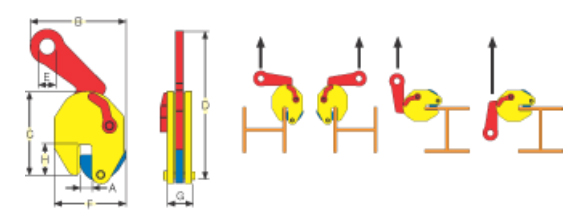

type cap jaw All dimensions in mm wt
  kgs A B C D E F G H Y kgs
1 FBK 1000 0-15 200 120 250 21.5 130 35 45 15 3
1.5 FBK 1500 0-20 260 200 350 65 170 45 65 15 5
3 FBK 3000 0-25 380 200 410 72 205 67 65 30 12
