TERRIER TBLC

TERRIER TBLC

TERRIER TBLC

TERRIER TBLC

For vertical lifting and transporting without marking of products with parallel sides in various materials as steel, wood, plastic, concrete, marble etc. The clamp is locked in the open position. To perform lifting, the operator must activate the handle and hold it up while the force on the lifting eye is going upwards. When laying down the load, the clamp automatically locks itself open. The pads are covered with special plastic to avoid damaging of the load.

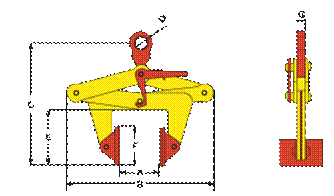

type Cap Jaw Dimensions in mm wt
  kgs A B C D E F G kgs
0.25 TBLC 250 0-120 320-360 150-450 30 140-150 70*80 15 3
0.5 TBLC 500 0-120 320-360 150-450 30 149-150 100*120 15 6
1 TBLC 1000 0-250 510-660 350-530 45 180-220 100*120 17 9
1.5 TBLC 1500 0-500 600-825 600-1200 65 250-300 100*120 20 10
2 TBLC 2000 0-250 510-550 350-550 45 180-220 100*120 17 16
3 TBLC 3000 0-500 600-825 600-1200 65 250-300 100*120 20 20
