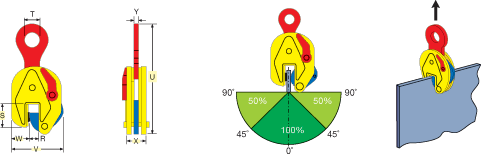

For vertical lifting and transportation of steel plates and structures. The TS(N)-X/STS-X lifting clamps are equipped with a safety mechanism, ensuring the clamp does not slip when lifting force is applied and when load is being lowered. The clamp is locked in closed as well as in open position. Lifting capacity and jaw opening are clearly engraved in the body. Type STS-X are supplied with enlarged jaw opening.

type cap jaw All dimensions in mm wt
  kgs (R) S T U V W X Y kgs
0.75 TS 750 0-13 47 30 200 90 35 37 10 1.5
1 TSN 1000 0-18 55 45 255 125 38 29 15 3.3
1 TSN 1000 0-25 55 45 255 135 38 27 15 3.5
1 TSN-A.L* 1000 0-25 55 45 255 135 38 27 15 3.5
1.5 TSN 1500 0-20 77 65 335 165 55 50 16 6
1.5 TSE 1500 0-35 77 65 340 175 55 50 16 6
2 TSE 2000 0-35 77 65 340 175 55 50 16 7
3 TS 3000 0-25 85 70 420 175 68 78 20 14
3 TSE 3000 0-45 85 70 440 205 65 68 20 14.5
4 TS 4000 0-32 112 75 490 240 85 68 20 19
6 TS 6000 0-40 110 75 540 250 95 86 20 24
7.5 TSE 7500 0-55 110 75 550 270 95 86 20 25
9 TS 9000 0-52 125 86 610 330 140 94 44 42
12 TS 12000 0-76 140 90 750 395 160 106 49 71
15 TS 15000 0-76 140 90 750 395 160 116 44 75
20 TS 20000 0-76 170 100 870 500 175 142 54 140
25 TS 25000 0-76 170 100 870 500 175 150 54 140
30 TS 30000 0-76 170 100 870 500 175 170 60 145
- - - - - - - - - - -
2 STSN 2000 17-38 77 65 340 175 55 50 16 6
3 STS 3000 25-50 85 70 440 230 70 78 20 15
4 STS 4000 28-57 112 75 480 260 100 78 20 19
6 STS 6000 28-62 110 75 550 270 95 86 20 24
9 STS 9000 50-100 125 86 610 390 145 94 44 45
12 STS 12000 80-150 130 85 760 470 160 106 49 77
20STS 20000 80-150 170 100 870 580 175 142 54 142
