The Terrier lifting clamps TS(N)-X, STS-X, TE-X and STE-X are also available in MP-version. MP-version means that the lifting shackle has a three way articulated linkage arrangement. For lifting and transportation of all steel plates and structures. When attached to a fixed load bearing arm (e.g. spreader bar) the clamp will retain its flexibility and no chain is needed. Due to length of the three way linkage arrangement the clamp can be lowered further between standing plates or structures. Lifting capacity and jaw opening are clearly engraved in the body. Type STSMP-X / STEMP-X is supplied with an enlarged jaw opening.

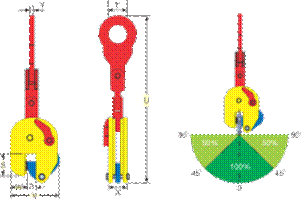

type cap jaw All dimensions in mm wt
  kgs (R) S T U V W X Y kgs
0.75 TSmp 750 0-13 47 30 308 90 35 37 10 1.9
1 TSEMP 1000 0-25 55 45 405 135 38 27 15 4.1
1.5 TSNMP-X 1500 0-18 55 45 405 125 38 29 15 4.1
2 TSNMP-X 2000 0-20 77 65 508 165 50 50 16 7.3
2 TSNMP-X 2000 0-35 77 65 508 175 50 50 16 7.5
3 TSEMP-X 3000 0-35 112 75 745 246 85 68 20 23
4.5 TSMP-X 4500 0-25 85 70 665 175 60 68 20 17
4.5 TSEMP-X 4500 0-45 85 70 665 175 60 68 20 18
6 TSMP-X 6000 0-32 112 75 745 246 85 68 20 23
7.5 TSEMP 7500 0-55 110 75 770 270 95 86 20 30
9 TSMP-X 9000 0-40 110 770 270 250 95 86 20 28
12 TSMP-X 12000 0-52 125 770 250 330 140 94 44 46
15 TSMP-X 15000 0-76 140 827 330 395 160 106 49 79
25 TSMP-X 25000 0-76 170 966 395 500 175 142 54 158
- - - - - - - - - - -
2 STSMP-X 2000 17-38 77 65 508 175 55 50 16 7.3
3 STSMP-X 3000 25-50 85 70 665 230 70 78 20 17
4.5 STSMP-X 4500 25-50 85 70 665 230 70 78 20 18
6 STSMP-X 6000 28-57 112 75 770 260 100 78 20 23
9 STSMP 9000 28-62 110 75 746 270 95 86 20 28
12 STSMP-X 12000 50-100 125 86 827 390 145 94 44 47
15 STSMP 15000 80-150 130 85 966 470 160 106 49 82
25 STSMP 25000 80-150 170 100 1147 577 175 142 54 161
