Lever Hoists

Lever Hoists

Lever Hoists

Lever Hoists

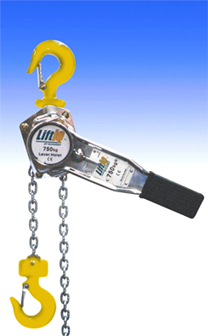

The Gunnebo Liftiq range of lever hoists are suitable for operation in the most arduous working conditions, with many features and benefits:

  • GS/TUV certification for manufacturing compliance to BS EN 13157 and CE approval

  • 250kgs – 9 tonnes WLL range

  • Robust, heavy duty steel construction throughout

  • Twin Pawl mechanism, for safety and smooth operation

  • Excellent mechanical efficiency – one of the lowest effort ratios in the market.

  • Excellent light load capability for increased safety

  • Drop-forged latch hooks, also available with optional heavy duty latch

  • All hoists fitted with electroplated load chain manufactured in the EU

  • Asbestos-free long-life friction discs

  • All Gunnebo Liftiq chain blocks and lever hoists are finished in a heavy duty chrome coating which gives additional protection against corrosion as well as looking cosmetically superior.

  • Gunnebo Liftiq chain and lever hoists are (after independent testing) specified by Shell Oil in their North Sea Oil Sectors and by most of their subcontractors such as Subsea 7, Bibby Offshore etc. Also in service in onshore Petroleum, Gas & Nuclear industries throughout the UK. Hoists are now distributed from the UK to other Gunnebo subsidiaries in the Middle East, Brazil, Scandinavia, Australia, South Africa and China.

  • Gunnebo Liftiq chain & lever hoists are also widely specified by many of the other offshore oil companies such as Texaco, Exxon, etc

  • Spare parts readily available as individual items, not as kits

  • Gunnebo have a policy of continuous development and improvement on all our lifting products. We work with the chain hoist manufacturer to improve these products, based upon feedback from users, distributors and our own ideas.

Lever hoists are supplied standard with
1.5m chain

wll
kgs
falls chain
mm
min ht
mm
hook opening
mm
weight
kgs
250 1 4 230 30 1.8
500 1 5 280 30 4.5
750 1 6 320 30 7.5
1500 1 8 380 36 11.5
3000 1 10 480 40 21
6000 2 10 600 50 31
