The all-inclusive chain sling system for coupling, shortening and lifting in grade 10.

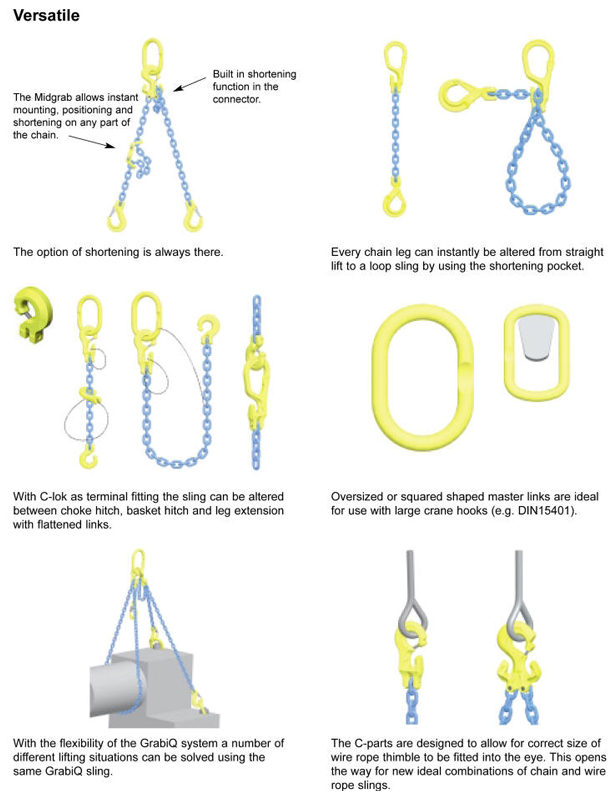

The GrabiQ sling system is designed to improve and make your lifting as quick and easy as possible. GrabiQ means for example;

25 % additional strength in the new grade 10 material.

All top assemblies consist of no more than three components.

Shortening function of chain legs is integral with no extra components.

One of the main merits of the GrabiQ system is that the work involved in connecting, adjusting and checking the lift takes less time and can be carried out more easily.

The already included shortening function, for example, means that a four-part sling which previously required up to thirteen different top components now needs only three in the GrabiQ system.

  Single leg WLL on 2 Legs 3 and 4 legs Endless
Chain dia 0 deg 0 – 45 deg per leg 45 – 60 deg per leg 0 – 45 deg per leg 45 – 60 deg per leg Choked
6mm .1.5 2.12 1.5 3.15 2.24 2.5
8mm 2.5 3.5 2.5 5.2 3.7 4.0
10mm 4.0 5.6 4.0 8.4 6.0 6.4
13mm 6.7 9.5 6.7 14.0 10.0 10.7
16mm 10.0 14.0 10.0 21.0

15.0

10.0
